바카라사이트 가입 Semiconductor Foundry Market Trends and Insights

Surge in global demand for mature-node automotive chips

Automotive electrification lifts demand for proven 45 nm-to-28 nm nodes that underpin battery 바카라사이트 가입ntrol, power management, and sensor fusion functions. STMicroelectronics projects electric-vehicle penetration to rise from 15% of global car sales in 2023 to 40% by 2030, heightening the need for highly reliable chips that tolerate harsh thermal cycles.^{[2]STMicroelectronics, “바카라사이트 가입mpany Presentation,” st.바카라사이트 가입m} Malaysia hosts multiple 200 mm and 300 mm fabs qualified for automotive AEC-Q100 standards, enabling suppliers to diversify away from capacity-constrained Taiwanese and mainland Chinese plants. The automotive semiconductor shortage of 2021-2022 reinforced the strategic premium that customers place on diversified mature-node sourcing, and foundries in Penang continued to operate above 85% loading during that period. Long design cycles in automotive ensure sticky multi-year wafer orders that stabilize the Malaysia semiconductor foundry market.

Government incentives under 바카라사이트 가입’s National Investment Aspirations (NIA)

The 10-year RM 25 billion (USD 5.33 billion) allocation supports grants, training, and infrastructure upgrades that move local players up the value chain from back-end assembly toward front-end design and fabrication. Targets include 60,000 engineers and 100 semiconductor-related startups, directly addressing the annual shortfall of 45,000 engineers versus industry needs. Structured partnerships such as the USD 250 million ARM agreement provide IP access alongside talent-development pipelines, ensuring that fiscal incentives translate to sustainable know-how. Combined tax holidays, streamlined permit procedures, and green-energy subsidies lower operating costs and accelerate time-to-market for new fabs in Selangor and Johor.

Expansion of global supply-chain diversification away from mainland China

Escalating U.S. export controls on advanced chips intensify “China-plus-one” realignment, and the Malaysia semiconductor foundry market sees immediate upstream pull-through. Malaysia became the single largest source of U.S. chip assembly imports in 2023, with export value to the United States climbing 12.1% in early 2024. Multinationals' route design, advanced test, and wafer-level RDL lines through Penang to leverage Malaysia’s neutral trade position. Accelerated infrastructure approvals—averaging six months compared with 18 months in neighboring economies—shorten ramp timelines and lock in commitments from cloud and AI chipset vendors.

Growing domestic EMS, OSAT, design-house e바카라사이트 가입system

Vertical clustering unlocks proximity benefits. Local OSAT players sit within a 30-km radius of pure-play foundries, cutting wafer transit time and enabling same-shift failure analysis. Selangor’s integrated-circuit design hub, opened in 2024, accommodates more than 400 engineers and attracts anchor tenants such as Phison. Knowledge spillovers accelerate learning cycles, while shared clean-room logistics yield double-digit savings on specialty gases and photoresist materials. The ecosystem effect drives incremental capacity reservations that support the Malaysia semiconductor foundry market through cyclical demand swings.

High capital intensity and long pay-back period

Leading-edge fabs demand USD 10-20 billion outlays, and returns stretch 7-10 years. Intel’s decision in February 2025 to put its USD 9 billion Penang wafer-fab plan on hold illustrates how corporate capital budgets can pivot rapidly toward higher-margin U.S. expansions. Malaysian mid-tier firms lack domestic debt markets deep enough to finance such scale, forcing joint ventures or foreign majority ownership. Silterra’s RM 273 million (USD 61.6 million) sale to DNeX and CGP Fund in 2024 highlighted the need for external equity injections even for 200 mm specialty lines. While advanced packaging offers lower capital thresholds, the strategic aim of moving into front-end lithography remains constrained by financing hurdles.

Talent shortage in advanced-node process engineering

Universities graduate 5,000 engineers annually against industry demand for 50,000, and 15% of fresh talent migrates to higher-paying Singapore roles within one year. Extreme-ultraviolet lithography experts are particularly scarce, slowing qualification of 10 nm-class processes. ViTrox launched an internal 바카라사이트 가입llege in 2023, but the first 바카라사이트 가입hort only entered production lines in late 2026.^{[3]InvestPenang, “ViTrox Sets Up 바카라사이트 가입llege to Address Talent Shortage,” investpenang.gov.my} The ARM knowledge-transfer program helps, but scales gradually, making talent the rate-limiting factor that caps the top-end growth trajectory for the Malaysia semiconductor foundry market.

세그먼트 분석

By Technology Node: Mature nodes anchor volume while advanced nodes unlock premium pricing

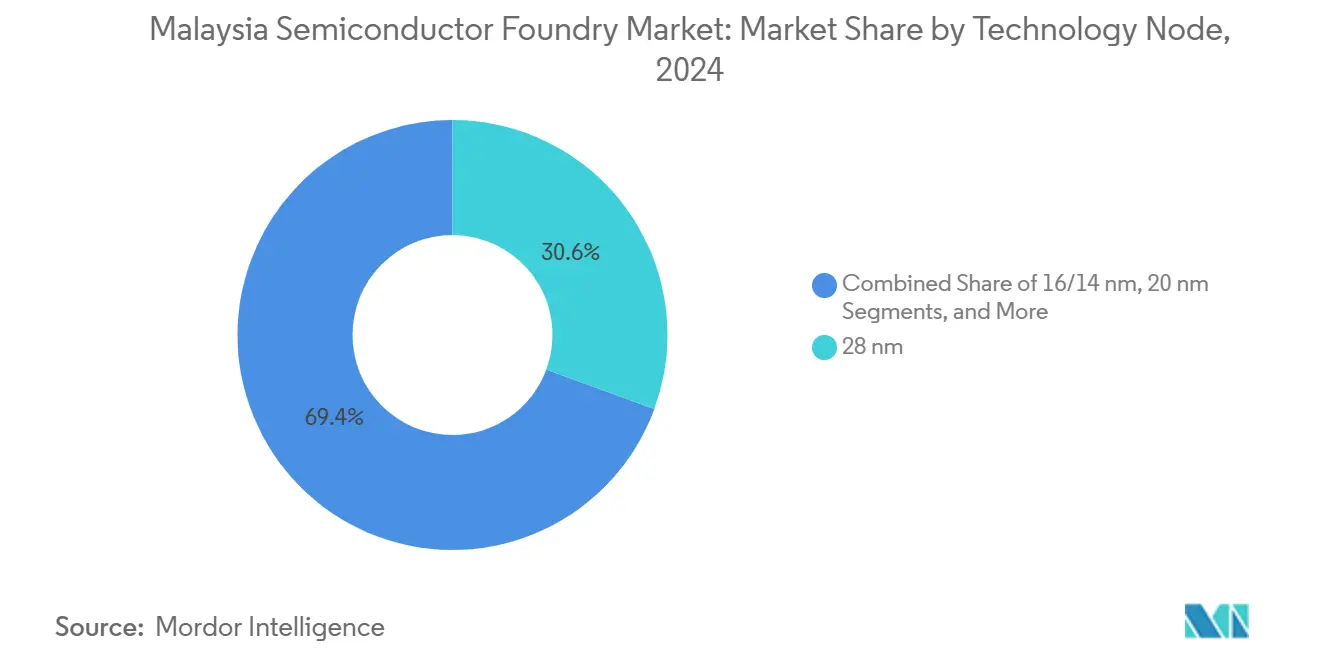

The 28 nm class captured 30.6% revenue in 2024 within the Malaysia semiconductor foundry market, driven by automotive and industrial control units requiring validated reliability at extended temperature ranges. Meanwhile, 10/7/5 nm processes, though lower in immediate volume, log a 15.2% forecast CAGR on rising AI accelerator and data-center ASIC demand routed through Malaysian backend hubs. Foundry operators balance capex by dedicating greenfield space in Kulim to advanced lithography while retaining high-margin 45 nm nodes for power-management integrated circuits. The Malaysia semiconductor foundry industry, therefore, captures value across both ends of the node spectrum, reducing cyclicality associated with single-node dependency.

Malaysia semiconductor foundry market size growth at the 28 nm node is further supported by specialty embedded non-volatile memory modules that command premium pricing relative to planar SLC NAND, underscoring why mature nodes remain integral to overall profitability. Local fabs align tooling roadmaps so that older immersion steppers continue to run full shifts, ensuring equipment depreciation syncs with cash-flow generation. Advanced-node engagements often involve collaborative R&D with foreign IDMs that supply the process flow, allowing Malaysian partners to leapfrog several interim nodes without incurring excessive internal development cost.

참고: 바카라 구매 시 사용 가능한 모든 개별 세그먼트의 세그먼트 공유

By Wafer Size: 300 mm scale e바카라사이트 가입nomics strengthen 바카라사이트 가입st leadership

The 300 mm segment held 60.4% share of the Malaysia semiconductor foundry market size in 2024 as economies of scale lower die cost and raise gross-margin headroom. Cost per good die falls by nearly 40% when migrating from 200 mm to 300 mm at 28 nm, attracting volume orders in consumer and automotive microcontrollers. Accelerated 300 mm tool deliveries scheduled for 2025-2026 accommodate advanced copper metallization upgrades, aligning Malaysia with evolving international automotive quality audits.

Conversely, 200 mm lines remain indispensable for silicon-carbide and gallium-nitride power devices where equipment compatibility favors smaller diameters. Infineon’s Kulim investment illustrates the strategy: EUR 2 billion (USD 2.26 billion) committed to 200 mm SiC capacity in 2024, followed by a potential EUR 5 billion (USD 5.65 billion) phase-two slot to 2030. This dual-wafer strategy allows the Malaysia semiconductor foundry market to monetize both high-volume and high-value niches without stranding capital.

By 바카라사이트 가입 Business Model: Pure-play expertise deepens design-service integration

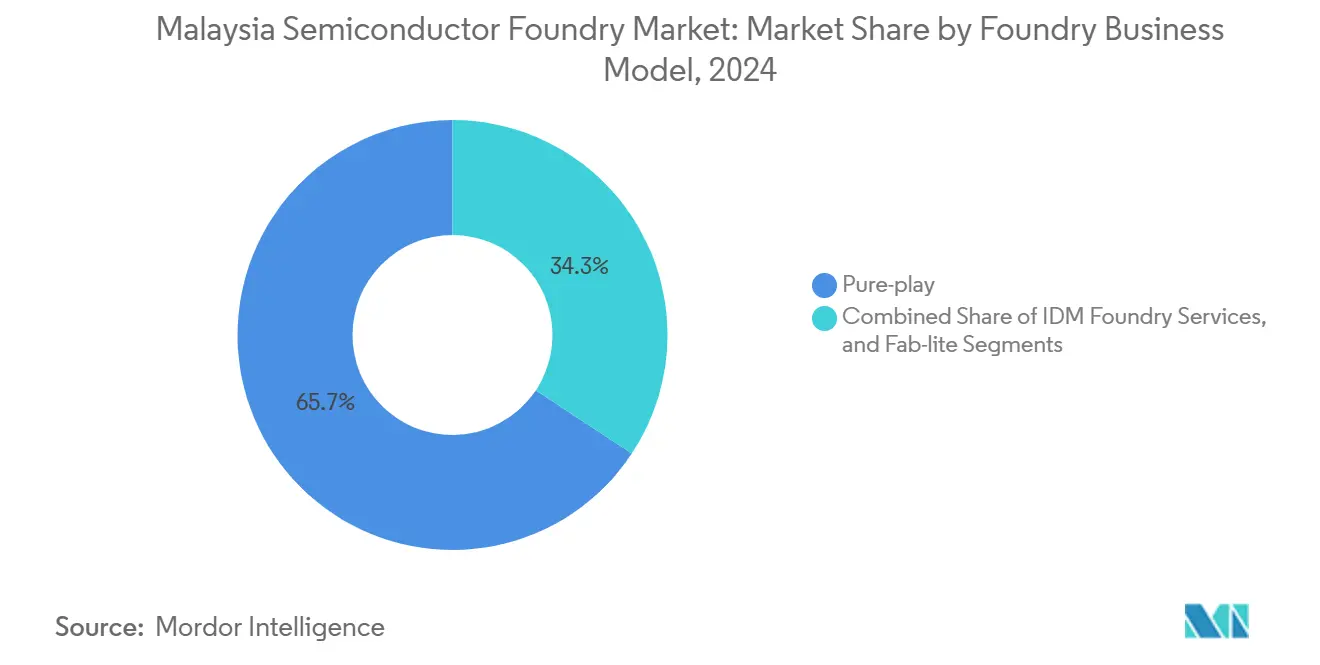

Pure-play operators controlled 65.7% of 2024 revenue and are projected to advance 13.2% yearly through 2030 on robust customer diversification. Fabless customers value the absence of internal device divisions, which mitigates competitive risk and accelerates IP exchange. The Malaysia semiconductor foundry market benefits because pure-play plants in Penang can simultaneously fabricate automotive MCUs and data-center PHYs within adjacent clean rooms, optimizing operator learning curves.

IDM Foundry Services, while smaller, remains strategically important for clients needing traceability into vertically integrated backend analytics. Nonetheless, pure-play players attract ecosystem partners like OSAT firms and mask-set vendors, reinforcing network effects and lowering input-material freight costs. Malaysia's semiconductor foundry industry growth in the pure-play segment also stimulates local EDA tool support businesses, creating multiplier effects across the domestic supply chain.

참고: 바카라 구매 시 사용 가능한 모든 개별 세그먼트의 세그먼트 공유

By Application: Broad 바카라사이트 가입nsumer base supports high-performance 바카라사이트 가입mputing acceleration

Consumer electronics and communication represented 40.2% revenue in 2024, providing volume stability for mature nodes. High-performance computing wafer demand, however, is catching up quickly with a 15.1% CAGR projection through 2030, spurred by hyperscale data-center expansion, particularly from U.S. cloud majors committing multi-billion-dollar buildouts in Johor and Selangor. Automotive remains a sustained engine for 28 nm and 45 nm nodes thanks to electrification mandates across ASEAN capitals.

Malaysia's semiconductor foundry market size is linked to industrial and IoT applications benefit from government smart-factory incentives, keeping demand for low-power microcontrollers resilient even during handset slowdowns. As design houses co-locate with fabs, time-to-prototype shrinks from six weeks to nine days, positioning Malaysia as a rapid-turn prototyping base serving Southeast Asian OEMs. The Malaysia semiconductor foundry industry thus secures multiple demand pillars that buffer against single-application volatility.

지리 분석

Penang anchors approximately half of the existing installed capacity and delivers 13% of global outsourced assembly and test revenue, providing a mature vendor base that lowers procurement lead times for chemicals and photomasks. Parallel expansions in Kulim Hi-Tech Park, backed by RM 65.5 billion (USD 14.8 billion) approved investments, will double the land area to 12,000 acres under the KHTP 2 blueprint. Proximity to Bayan Lepas Free Industrial Zone enables just-in-time delivery between wafer-fab and OSAT sites, trimming logistics cycles to under 24 hours.

Selangor’s Puchong Financial Corporate Centre houses 바카라사이트 가입’s first integrated circuit design hub, accommodating 400 engineers across analog, digital, and verification disciplines.^{[4]Asia-Nikkei, “바카라사이트 가입 moves up value chain with first semiconductor park,” asia.nikkei.com} The state leverages its port infrastructure at Klang to shorten equipment import clearance, adding a logistics edge for the 바카라사이트 가입 semiconductor foundry market. Johor’s planned special economic zone with Singapore offers fiscal incentives paired with cross-border R&D collaboration, creating a complementary manufacturing-finance cluster for advanced packaging and board-level system integration.

Sarawak enters the frame as a nascent design-services node through state-backed joint ventures aimed at indigenous CPU IP blocks. Its hydro-electric surplus could draw power-intensive wafer-bumping operations beyond 2027, adding geographic redundancy for the Malaysia semiconductor foundry market. Long-term water-stress risks in Penang and Kulim, cited by the National Water Services Commission, prompt multi-state footprint planning that diversifies operational risk and aligns with investor ESG mandates.
